Agent Workload Identity

Overview

An agent’s name is a selector; a signed workload token proves its provider-issued identity. In direct mode, the SDK presents that token in X-Agent-Token, verified against the selected provider’s own key set. Entra also supports gateway runtime authentication: the gateway verifies the approved runtime key and any required cloud identity, exchanges its blueprint credential for the exact Entra child, and issues a short-lived session bound to the runtime key. The SDK proves possession of that key on each session-backed request. Without a provider the agent is trusted on the strength of its Virtual Key alone, which is appropriate for local development and not much else.

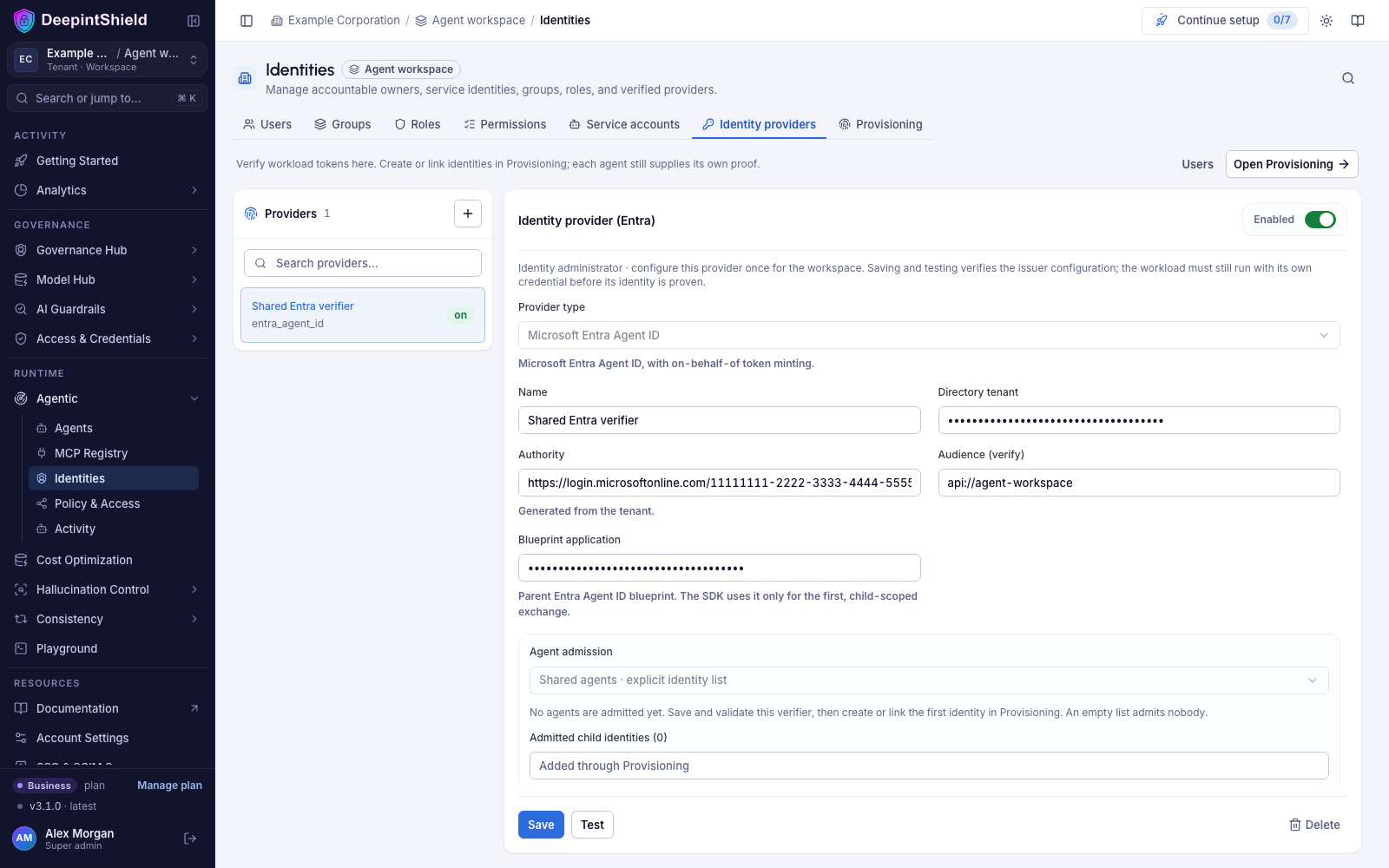

Configure providers under Agentic → Identities → Identity providers, then review a discovered agent under Agents → Needs attention → Review. Verified proof or an explicit VK-trusted approval determines its trust state. Use Identity & credentials for later changes to an active agent.

For server-managed LangGraph execution, the same review configures the worker’s identity and authorizes its separate server runtime key. The saved submission can progress without rerunning the client. Local client keys are separate approvals; the worker never imports a client’s private key.

Captured 10 October 2026 with synthetic demonstration data.

Supported provider types

Type	Use it for
entra_agent_id	Microsoft Entra Agent ID. Constrained to approved Microsoft authority hosts.
generic_oidc	Signed JWT access tokens from a compatible OAuth issuer, with an exact audience and mapped workload identity.
zeroid	ZeroID-issued agent identities; requires a configured exchange endpoint and workload assertion.

The provider editor offers Entra and Generic OIDC. SPIFFE subject parsing and endpoint validation are implementation groundwork, not a complete supported SDK-to-gateway JWT-SVID onboarding flow. Do not select it for a production deployment until the runtime adapter and credential integration are available.

Endpoints are validated before the gateway dials them: no cloud metadata address is ever reachable, and the hostname is resolved by the same client that connects, so a DNS answer cannot change between validation and the connection.

SPIFFE groundwork

A SPIRE OIDC discovery service normally has no public address and rarely runs on port 443. The spiffe provider type therefore permits a private in-cluster endpoint and a non-default port, while still refusing cloud metadata endpoints, which are never a SPIRE service. A SPIFFE ID must name both a trust domain and a workload path: spiffe://example.org alone names a domain, not an agent, and is refused.

Configure once, then review each agent

For a complete fresh Microsoft setup and a laptop-hosted gateway, follow Microsoft Entra with a local gateway. It covers the gateway API, blueprint, management permissions, pasted credentials, automatic Gateway.Invoke assignment and every test2.py review step at http://localhost:8080.

Create one identity for each logical agent and security boundary, usually with separate identities for development and production. Repeated runs, replicas, and token refreshes reuse that identity. A human owner can own many agents; neither every run nor every person starting the same workload needs a new client registration. Agents that need independent permissions, revocation, or audit attribution need separate identities.

Entra gateway runtime authentication: minimum steps

Use this path when the gateway should hold the Entra blueprint runtime credential and the existing agent script should enroll its own runtime key. It requires SDK and gateway builds containing runtime authentication; updating the browser alone does not enable it on an older gateway.

1. Prepare the Entra tenant, approved agent identity blueprint, and gateway API audience. Define the gateway API’s Gateway.Invoke application role; the broker requires that role in the verified child token. Provisioning can assign it during creation with the explicit opt-in in step 3, or the Entra administrator can assign it after creating the child. Provisioning Graph permissions and gateway invocation permissions are separate.

2. Open Agentic → Identities → Identity providers. Create or edit the Entra provider, set its tenant, blueprint, issuer and gateway audience, and use Shared agents · explicit identity list for multiple children. Under Runtime authentication, a new Entra provider defaults to Gateway exchanges Entra token · recommended; keep it and enable Gateway exchange enabled. Workload supplies Entra token · Azure-hosted workloads only is an explicit choice: the workload host itself must hold an Entra credential (environment variables, workload identity federation or a managed identity, tried once in that order; the SDK fails fast with a single error line when none is present). A brand-new agent’s first run can submit a provisional runtime key before its identity exists: a workspace with one validated gateway-exchange Entra provider uses it automatically, and with several, Default for new registrations selects the one that receives those keys. Choose one blueprint runtime credential from the table below, then save and validate the provider.

3. Complete Provisioning → Authorize provisioning once for this workspace and provider, using the separate Graph management credentials. To include the invocation grant in the same creation job, select Assign Gateway.Invoke when creating agents after the management application has the additional consent described below. Use Create or link identity for math-agent, select its active human owner, and wait for Completed. This declares agent:math-agent against the exact Entra child. An existing matching declaration does not need to be recreated.

4. Install deepintshield[runtime] 3.2.0 or newer in the Python environment running test2.py. Supply four settings: the gateway URL (DEEPINTSHIELD_BASE_URL), the active workspace reporting Virtual Key (DEEPINTSHIELD_VIRTUAL_KEY), the agent name math-agent (DEEPINTSHIELD_AGENT_NAME) and the developer’s work e-mail (DEEPINTSHIELD_REGISTERED_BY). Run the existing saved script once. The SDK discovers the gateway mode, enrolls its public runtime key and stops with Registration pending. Reference <registration id> · runtime key SHA256:<thumbprint>. Contact your administrator. You will be notified at <email>. The administrators receive a review-needed e-mail. No Entra blueprint or management secret is copied into test2.py.

5. One review sitting. Open Agents → Needs attention and select Review for math-agent. Confirm the Accountable owner proposed from the registering e-mail, or choose another; confirm the child from step 3 under Identity & owner, or create or link it here. In Runtime access, compare the Key fingerprint with the thumbprint printed to the developer and, under Details, the Agent, Entra child and Provider against the intended deployment. Select Authorize runtime key, choose Approved runtime key · any host for local development or a cloud identity policy below, and confirm the exact key. Review Code & changes and Tools & access, then in Review & decide select Approve now, activates on the agent’s next run and confirm with Approve now · activates on next run. The reviewer must not be the accountable owner.

6. Run test2.py again. The gateway verifies the runtime key and the Entra exchange, applies the recorded decision and the agent executes; the review then shows Runtime proof and Entra exchange as Verified. A script changed after the decision was recorded reports pending again and needs a new review. The recorded decision grants every action the administrator selected, so the whole agent runs; the Decision recorded card lists the actions that activation will grant. See Deferred activation.

   Gateways without deferred activation use the earlier sequence: authorize the key, run test2.py to collect proof, complete owner, code and access review with Preview approval → Confirm approval and access, then run again.

Blueprint runtime credential	Configure once on the gateway
Client secret · development	Paste the Blueprint client secret VALUE and explicitly select This gateway runtime connection is for development. This is the blueprint’s secret, not the Graph management application’s secret.
Certificate	Register the public certificate on the blueprint, then enter Certificate PEM and its matching Private key PEM. The gateway stores the credential encrypted. This option does not require an Azure-hosted gateway.
Gateway Azure managed identity	Configure Entra federation from the gateway host’s Azure managed identity to the blueprint. Enter the user-assigned identity’s client ID, or leave it empty for system-assigned identity. This credential option requires the gateway host to have that Azure identity; it does not require the agent to run on Azure.

The gateway never returns stored secret values in its configuration API. For Entra v2 tokens, configure the verification audience as the gateway API’s application client ID (UUID). The token request instead uses its application ID URI with /.default. The gateway defaults to api://<application-client-id>; if your API uses a custom URI, set Optional token scope settings → Gateway API application ID URI. This does not change the expected JWT audience.

Preserve its encryption key with its persistent data. The SDK separately preserves the workload’s runtime private key using the native keyring or, on POSIX, a restricted local file. Its default descriptor directory is ~/.deepintshield/runtime-keys; deployments can select a persistent directory with DEEPINTSHIELD_RUNTIME_KEY_DIR or mount a private key using DEEPINTSHIELD_RUNTIME_KEY_FILE. A replacement runtime key needs a new explicit authorization. Pausing gateway exchange blocks this mode rather than silently switching to direct authentication.

Require the application’s native cloud identity

Approved runtime key · any host verifies possession of the approved key; it does not attest the machine, cloud account, or hardware. To require native cloud identity as well, choose the matching Runtime identity policy during the same runtime-key confirmation. Enter the exact Workload token issuer, Exact workload subject, Workload token audience, and Workload signing keys (JWKS URL). The gateway verifies all four as well as the runtime key. Issuer and signing-key endpoints must be HTTPS and reachable by the gateway.

The workload opts into native credential access through the following non-secret deployment settings. The approved workload-token audience is supplied to the SDK; DEEPINTSHIELD_RUNTIME_AUDIENCE can additionally pin it locally.

Application host	Workload deployment settings and prerequisites
GCP	Set DEEPINTSHIELD_RUNTIME_KIND=gcp on a host exposing Google’s service-account identity-token metadata endpoint. Pin that service account’s token subject and issuer in the binding.
AWS	Enable outbound identity federation, authorize the workload to call sts:GetWebIdentityToken, and install deepintshield[runtime-aws]. Set DEEPINTSHIELD_RUNTIME_KIND=aws and DEEPINTSHIELD_RUNTIME_AWS_REGION to the regional STS endpoint’s region. Pin the account’s returned IssuerIdentifier, its /.well-known/jwks.json, the exact token subject, and the selected audience. The issuer is account-specific; it is not the regional STS request URL.
Azure	Set DEEPINTSHIELD_RUNTIME_KIND=azure on a managed-identity host. Use DEEPINTSHIELD_RUNTIME_AZURE_CLIENT_ID for a user-assigned identity; omit it for system-assigned identity. Azure VM metadata is supported; Azure managed hosts exposing their own identity endpoint also need the azure extra. Pin the actual token’s issuer, subject, audience and signing keys.
Kubernetes	Set DEEPINTSHIELD_RUNTIME_KIND=kubernetes and DEEPINTSHIELD_RUNTIME_TOKEN_FILE to an explicitly projected, audience-specific service-account token file. Pin the cluster’s issuer/JWKS and exact service-account subject. The default Kubernetes API token is not selected automatically.

These application identities are independent of the gateway’s blueprint credential. For example, an AWS-hosted application can use AWS outbound identity federation while the gateway authenticates to Entra with a certificate. Cloud selection alone is not evidence: proof appears only after a successful runtime verification and Entra exchange. The broker does not bypass source review, tool permissions, or per-request authorization.

Provision identities from DeepIntShield

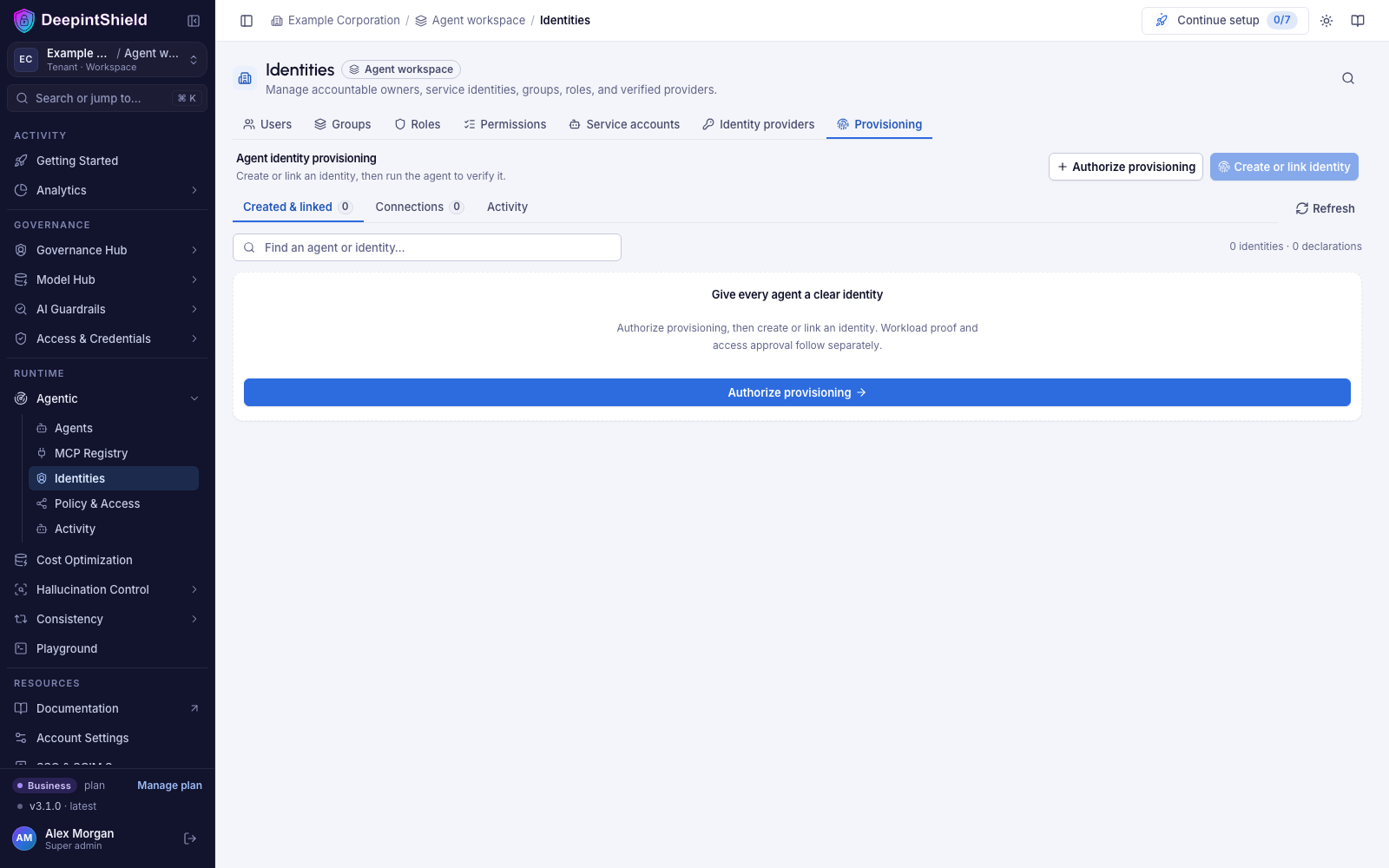

Use Agentic → Identities → Provisioning to connect management access, create or link identities, and track their lifecycle. This is separate from the Identity providers tab, which configures token verification. Management credentials are never agent runtime credentials.

Use a workspace with the Agentic identity feature and an operator who can create or update Agentic records. Select the intended tenant and workspace before creating the provider, owner, connection, or agent. This flow describes the current SDK 3.2.0 / Server 3.2.0 implementation; use deployed builds containing these features, since a version label alone does not establish which changes are installed.

1. Configure, enable, and validate the runtime identity provider, including its issuer and gateway audience.
2. Have the customer’s identity administrator authorize a provisioning client and the permitted workspace, blueprint or realm. For Entra, prepare its application client ID, client secret value, and approved sponsor IDs.
3. In Provisioning, choose Authorize provisioning, select the matching runtime provider, and use Paste credentials for Entra. The gateway stores the management secret encrypted. Server environment references remain available for Entra and are used by the other connectors. Issuer, audience, and the Entra directory/blueprint are inherited from that verifier and shown read-only. Run Check connection.
4. Choose Create or link identity, select an active human owner, and keep a stable agent key and deployment environment. A durable job creates or finds the external identity and saves its expected identity declaration.
5. Configure the workload for direct credentials or the gateway runtime path above, run the agent to send fresh proof, and finish the registry review. Creating an identity does not approve code or grant tool access.

For a new shared Entra verifier, use Agent admission → Shared agents · explicit identity list. Save and validate it before creating the first child. An empty list admits no workload; provisioning adds the exact created or linked child IDs. No placeholder child ID or separate verifier per agent is needed. Existing single-child settings remain unchanged; explicitly switching them to shared mode carries only the currently admitted child into the list. Saved list, prefix, and any predicates retain their policy. A preserved Default child client ID supports older manual configuration and does not add a child to the shared admission list.

For Keycloak, Auth0 and Okta, use a shared Generic OIDC verification provider with the token’s sub mapped to the principal and without a provider-wide client-ID default. Each workload receives its own client ID from its credential destination. Provisioning refuses an incompatible single-client pin instead of silently widening it. Customized token-subject transformations require a separately supported connector mapping; fresh workload proof is always checked.

Connector	Customer setup	Credential delivery
Entra Agent ID	Existing approved blueprint, Graph management authorization, approved sponsor object IDs, and the selected direct or gateway runtime credential	Uses the blueprint credential/federation; no child client secret is created
Keycloak	Existing realm and a restricted client permitted to manage the intended realm’s service clients	Generated client secret delivered to Vault KV v2
Auth0	Management API authorization to manage clients and the approved API’s client grants	Vault KV v2 client secret, or registered RSA public keys
Okta	Authorized management service app and a custom authorization server with the required audience, scopes, and access policy	Vault KV v2 client secret, or registered RSA public keys

Connector capabilities determine which actions appear. All four support create, link, and check; disable and retire apply only to identities DeepIntShield manages. Linked identities remain read-only and use their existing workload credential delivery. Okta public-key rotation adds keys while retaining existing keys for an overlap period; it does not remove old keys. The other connectors do not offer rotation, and no connector offers automatic client-secret rotation.

Captured 10 October 2026 with synthetic demonstration data.

Understand the provisioning records

UI area	What it records
Identity providers	Runtime token verification settings; enabling and validating a verifier does not authorize management access.
Provisioning → Connections	Customer-approved management connections to those verifiers. A verifier can exist before any provisioning connection.
Provisioning → Created & linked	Identities recorded by provisioning create or link jobs. The count excludes manual identity declarations.
Provisioning → Created & linked, cards marked Declaration	Expected identity reservations that have no corresponding provisioning record. A declaration is not workload proof.
Provisioning → Activity	Provisioning and lifecycle jobs, separate from registration approval.

It is valid to see 0 created or linked identities while declarations already exist. Check the declaration and its current claimant before creating another identity or changing the workload’s name. To record an existing external identity through this tab, use the authorized link flow; linked identities remain read-only.

Authorize an Entra connection in the UI

Start with an enabled, tested Entra verifier. In Identity providers, select the provider and check Directory tenant, Audience (verify), Blueprint application, and the generated Authority and JWKS URI. Blueprint application is the existing parent blueprint’s application/client ID. Save, then Test, validates the saved configuration; the embedded registration editor offers Save & validate. Workload identity still needs a credentialed run.

Paste credentials is ready to use without configuring an environment variable or encryption key. The gateway encrypts management credentials automatically. If an encryption_key is already configured, it continues to use that key; otherwise, it creates and reuses provisioning-credentials.key in its persistent application data directory.

Preserve this key file with the gateway data across restarts and backups. Replicas that share stored credentials must use the same key and persistent data volume. If secure storage is unavailable, check the gateway data directory and server logs; credentials cannot be saved until the storage problem is fixed.

In Microsoft Entra, open the authorized management application’s App registrations → Overview and copy Application (client) ID. Under Certificates & secrets → Client secrets, create a secret if needed and copy its Value while it is visible. Enter that value in DeepIntShield; the secret’s ID is a different field. See Microsoft’s application credential setup.

The management application must have approved Graph permissions and consent for the intended operations. Check connection lists agent identities; Microsoft’s list API documents AgentIdentity.Read.All. Creating also needs authorization described by the create API, such as AgentIdentity.Create.All or AgentIdentity.CreateAsManager. Grant management access to the provisioning application.

To assign the gateway invocation role inside the existing create job, also grant that management application the Microsoft Graph application permissions AppRoleAssignment.ReadWrite.All and Application.Read.All, then grant administrator consent once. Microsoft documents these permissions in Grant an app role assignment. The opt-in below authorizes only the Gateway.Invoke role on the resource matching this connection’s gateway audience, for owned children created or reconciled by provisioning. Linked external identities keep their existing grants. Turning the option off does not revoke Entra grants already assigned. For a managed identity on an opted-in connection, Check identity also assigns a missing gateway invocation role. Its confirmation describes that change. Check connection only checks connection access and resolves the gateway role; it does not assign a role to a child.

Open Provisioning → Authorize provisioning:

Field	What to enter
Connection name	A label such as development-entra-provisioning.
Management provider	Microsoft Entra.
Workload verification provider	The enabled Entra verifier just configured.
Verification settings	Check the inherited Token issuer, Gateway audience, Directory tenant, and Authorized blueprint. These are read-only in this form.
Management URL	https://graph.microsoft.com.
Allowed scopes	Space-separated workload scopes approved for this connection. Leave empty when none are configured; this field does not grant Microsoft Graph management permissions.
Assign Gateway.Invoke when creating agents	Off by default. Select after the one-time Graph permission/consent above to include the exact gateway invocation role in the same creation job. Changing the selected verifier, audience, tenant or blueprint clears this opt-in for review.
Management credentials	Keep Paste credentials, the default for a new Entra connection.
Management application (client) ID	The authorized management application’s Application (client) ID.
Client secret VALUE	The management application’s client secret Value.
Sponsor user object IDs / Sponsor group object IDs (optional)	Approved Entra user or group UUIDs, separated by commas, spaces, or newlines, with one to ten total IDs across both fields. The local accountable owner’s name does not supply these IDs.
Allowed existing child identity IDs (optional)	Exact Entra child agent identity IDs this workspace may link. Leave empty when only creating new children.
Connection enabled	On.

Entra uses the existing blueprint federation and does not generate a child client secret or ask for a credential delivery reference.

Click Save connection, then Connections → Check connection. Under Activity, wait for that job to show Completed. This checks server authorization and a live Graph read; a successful check does not prove the workload or guarantee that every later management operation has permission.

The saved secret is not returned by the API or displayed when reopening the connection. Leave the secret field empty to retain it for the same management client ID; enter a new value to replace it. Changing the client ID requires its own secret. DeepIntShield generates and preserves the internal ownership key used to reconcile provisioning retries. Entra requires a valid sponsor reference when creating an agent; its create API example shows user and group references. This connector requires the sponsor IDs when checking or linking a connection as well.

To use an existing server-managed configuration instead, select Server environment reference and enter its Management credential reference, such as env:DEEPINTSHIELD_PROVISIONING_ENTRA. See Entra server authorization below.

Link an existing Entra identity or create a child

Open Create or link identity and select the checked Connection. Choose Link existing when the child already exists. Choose Create new when this logical agent needs a new child under the approved blueprint.

Field	What to enter
Agent key	A stable key such as invoice-assistant-dev, using lowercase letters, numbers, underscores, or hyphens. Use the same value in DEEPINTSHIELD_AGENT_NAME on every run.
Display name	A readable label; it does not replace the key or token identity.
Accountable owner	An active human from Identities → Users. Create or activate that directory entry first if the selector is empty.
Environment	The deployment environment, for example development.
Existing provider object ID (link only)	The existing Entra agent identity object’s Graph id, authorized in Allowed existing child identity IDs or the environment configuration’s linkable_external_ids for this workspace.
Expected token identity (link only)	For this Entra connector, the same child agent identity ID. For generic OIDC connectors, use the exact token principal instead; it may differ from the OAuth client ID.

The Entra connector verifies that Graph returns an agentIdentity under the connection’s blueprint. It records that object’s id as the child client ID and expected identity. An ordinary application registration’s object ID, the parent blueprint ID, and a human owner’s ID are not substitutes. Obtain the child ID from the identity administrator rather than guessing from its name.

Click Link identity or Create identity. Track the job in Activity until Completed, then use Run and verify this agent. A completed job records the expected identity declaration automatically and adds the exact child to an eligible Entra admission list when needed, preserving already admitted children. Existing prefix/any policies must already admit the child. There is no need to click Declare again after successful provisioning.

An existing declaration for the same agent key, provider, and child can be recorded through Link existing. Create new does not replace that declaration. If another agent owns the claim, inspect the named claimant and follow Recovery and retirement. Do not create a second identity merely because Created & linked is zero.

Server authorization and secret delivery

Entra’s Paste credentials stores its management secret encrypted and binds the saved authorization to the current tenant, workspace, verifier, and blueprint. It derives the Microsoft token endpoint from the directory tenant and uses https://graph.microsoft.com/.default for management access. Runtime workload credentials and blueprint host federation still require separate setup.

Server environment reference remains supported for all connectors. This mode accepts references named env:DEEPINTSHIELD_PROVISIONING_*; the corresponding environment variable holds server-managed JSON. Its tenant, allowed workspaces, provider, issuer, audience, realm or blueprint, scopes, and delivery destination must match the saved connection. A workspace operator cannot widen this reference’s authorization in the UI. Inject that JSON through the deployment’s secret manager; do not paste it into the reference field or put it in source control or the workload environment.

Entra server authorization

This alternative is for Server environment reference; skip it when using Paste credentials. For example, inject the following JSON as the gateway’s DEEPINTSHIELD_PROVISIONING_ENTRA environment variable, then enter only env:DEEPINTSHIELD_PROVISIONING_ENTRA in the UI. Every identifier below is a placeholder. tenant_id and allowed_workspaces identify DeepIntShield’s scope; directory_tenant_id identifies the customer’s Microsoft Entra directory.

{
  "tenant_id": "DEEPINTSHIELD_TENANT_ID",
  "allowed_workspaces": ["DEEPINTSHIELD_WORKSPACE_ID"],
  "provider_type": "entra_agent_id",
  "base_url": "https://graph.microsoft.com",
  "issuer": "https://login.microsoftonline.com/ENTRA_DIRECTORY_TENANT_ID/v2.0",
  "directory_tenant_id": "ENTRA_DIRECTORY_TENANT_ID",
  "blueprint_id": "ENTRA_BLUEPRINT_APPLICATION_ID",
  "audience": "GATEWAY_TOKEN_AUDIENCE",
  "assign_gateway_invoke": false,
  "allowed_scopes": [],
  "delivery_ref": "",
  "ownership_key": "REPLACE_WITH_A_STABLE_RANDOM_SECRET_OF_AT_LEAST_32_CHARACTERS",
  "sponsor_object_ids": ["ENTRA_SPONSOR_USER_OBJECT_ID"],
  "sponsor_group_ids": [],
  "token_endpoint": "https://login.microsoftonline.com/ENTRA_DIRECTORY_TENANT_ID/oauth2/v2.0/token",
  "client_id": "AUTHORIZED_MANAGEMENT_CLIENT_ID",
  "client_secret": "INJECT_FROM_CUSTOMER_SECRET_MANAGER",
  "token_scope": "https://graph.microsoft.com/.default",
  "linkable_external_ids": {
    "DEEPINTSHIELD_WORKSPACE_ID": ["EXISTING_ENTRA_CHILD_AGENT_ID"]
  }
}

Replace directory, blueprint, sponsor, and child placeholders with actual UUIDs. The management permissions described above apply to both credential sources. For an environment-reference connection, enabling automatic invocation-role assignment also requires assign_gateway_invoke: true in this server-managed JSON. A workspace checkbox cannot widen the reference’s authorization. In Paste credentials mode, the checkbox is included in its encrypted authorization automatically. If a queued job’s authorization changes, review its connection and use Retry to adopt the current settings.

This example uses a server-managed client secret. For federation, replace client_secret with client_assertion_file referencing an assertion file available to the gateway; configure the corresponding Entra trust first. The management token’s token_scope is separate from the connection’s Allowed scopes and the runtime gateway audience.

The implementation requires one to ten total sponsor UUIDs across sponsor_object_ids and sponsor_group_ids, including during connection checks and linking. The administrator chooses supported Entra sponsors; the local Accountable owner field does not populate these arrays. The link allowlist is required for an existing child and may be omitted when only creating new children. Preserve the ownership key and authorization bindings across gateway restarts and replicas. Changing an environment variable in a developer’s shell does not configure an already-running gateway process or container.

Keycloak and Vault example

For example, the value of DEEPINTSHIELD_PROVISIONING_ACME for Keycloak has this shape (replace placeholders with customer-approved values):

{
  "tenant_id": "customer-tenant",
  "allowed_workspaces": ["workspace-id"],
  "provider_type": "keycloak",
  "base_url": "https://sso.example.com",
  "issuer": "https://sso.example.com/realms/agents",
  "realm": "agents",
  "audience": "deepintshield",
  "allowed_scopes": ["workload"],
  "delivery_ref": "env:DEEPINTSHIELD_PROVISIONING_ACME_VAULT",
  "ownership_key": "REPLACE_WITH_A_STABLE_RANDOM_SECRET_OF_AT_LEAST_32_CHARACTERS",
  "token_endpoint": "https://sso.example.com/realms/agents/protocol/openid-connect/token",
  "client_id": "approved-provisioner",
  "client_secret": "INJECT_FROM_CUSTOMER_SECRET_MANAGER",
  "linkable_external_ids": {"workspace-id": ["approved-existing-object-id"]}
}

ownership_key authenticates the reconciliation marker stored on created objects. Preserve it across restarts and replicas. linkable_external_ids explicitly authorizes which existing objects each workspace may link.

The DEEPINTSHIELD_PROVISIONING_ACME_VAULT value identifies a Vault KV v2 sink:

{
  "tenant_id": "customer-tenant",
  "allowed_workspaces": ["workspace-id"],
  "base_url": "https://vault.example.com",
  "mount": "secret",
  "path_prefix": "deepintshield/agents",
  "token_ref": "env:DEEPINTSHIELD_PROVISIONING_VAULT_TOKEN"
}

Scope the Vault token to that prefix. Provisioning stages secrets with compare-and-set before creating a client, then marks the record ready: true after setup succeeds. Workloads must consume only ready records. The identity record exposes a destination reference, never the secret. Workload access to Vault is configured separately; the gateway’s Vault token is not delivered to agents.

For a secret-based OIDC workload, map the ready record’s client_id, client_secret, and token_endpoint to OIDC_CLIENT_ID, OIDC_CLIENT_SECRET, and OIDC_TOKEN_ENDPOINT, with OIDC_CLIENT_AUTH_METHOD=client_secret_post. Map its scopes to a space-separated OIDC_SCOPES. An unset OIDC_SCOPES retains the verification provider’s scope defaults; an explicitly empty value omits the token request’s scope parameter. Use an SDK build containing this override.

Auth0 uses OIDC_AUDIENCE from the record’s audience. For the provisioned Keycloak and Okta clients, set OIDC_AUDIENCE="": their access-token audience comes from the realm’s audience configuration or custom authorization server, rather than an audience request parameter. The gateway still verifies the configured token audience. The SDK example examples/agentic/provisioned_oidc.py consumes a mounted ready record and starts the workload without printing or passing the secret on its command line; see Provisioned workload credentials.

For Auth0 or Okta public-key authentication, set OIDC_CLIENT_AUTH_METHOD=private_key_jwt, mount the workload’s private key as OIDC_PRIVATE_KEY_FILE, and set OIDC_PRIVATE_KEY_KID to the registered public key’s kid. Only the public RSA key is sent to provisioning. The secret-based launcher example does not configure this flow or Entra federation.

Environment-configured management authentication also supports private_key_file with key_id for RSA private_key_jwt, or client_assertion_file for a projected Entra federation assertion. Private key files must have restrictive permissions. Alternatively, access_token_ref names a separately managed bearer-token reference. Use token_scope and token_audience for the management token’s authorization; these differ from the workload connection’s audience and scopes.

For Entra use provider type entra_agent_id, base URL https://graph.microsoft.com, the existing directory_tenant_id and blueprint_id (the blueprint’s application/client ID), and an issuer of https://login.microsoftonline.com/<tenant-id>/v2.0. Supply approved user or group sponsor IDs in Paste credentials, or sponsor_object_ids and sponsor_group_ids in the server JSON. The local accountable owner’s subject is not assumed to be an Entra object UUID. The created agent identity’s id is its child client ID. Provisioning uses the existing blueprint; it does not create its host federation or consent grants.

Common provisioning failures have specific setup causes:

Failure	What to check
credential_storage_unavailable	Check the gateway data directory and server logs for key-file or storage failures. Preserve the existing provisioning-credentials.key file or configured encryption key; the secret is not saved without encryption.
server_reference_unavailable	The gateway process can read the named environment reference; entering its name in the UI is not enough.
provisioner_scope_denied	DeepIntShield tenant and allowed workspace bindings match the current connection.
provisioner_binding_mismatch	Provider, management URL, issuer, directory, blueprint, audience, and delivery reference exactly match the saved connection.
entra_sponsor_configuration_required	The saved credentials or server JSON supply one to ten supported sponsor UUIDs.
external_identity_link_not_authorized	The existing child ID is in Allowed existing child identity IDs or this workspace’s environment-configured link allowlist.
provider_identity_mismatch	The selected Graph object is an Entra agent identity under this blueprint and matches the requested identity.
management_permission_denied	The management client has the required Graph authorization for the failed operation.

Correct the cause, then use Check connection or the failed job’s Retry. Keep the original job when reconciling an uncertain create.

Endpoints require HTTPS on port 443. Private Keycloak and Vault DNS hosts must also be listed in the server’s comma-separated DEEPINTSHIELD_PROVISIONING_PRIVATE_HOSTS; loopback and link-local targets remain blocked. Redirects cannot move management credentials to another endpoint.

Recovery and retirement

If the verifier’s settings change, an existing connection keeps its saved settings. For an unused connection, open it and choose Use current verification settings, then Save connection and Check connection. This explicit step updates the inherited issuer, audience, and Entra tenant/blueprint in the draft; background refresh does not replace them. For Server environment reference, the reference must permit the resulting settings.

Once the connection has an identity or a job other than Check connection, its trust and delivery settings cannot be changed. Authorize a new connection for the new configuration; existing identities retain their original settings.

Provisioning runs in leased database jobs outside agent execution. Retries reconcile the deterministic identifier and authenticated ownership marker. An uncertain create is never blindly repeated: it remains in reconciliation until the provider object can be found. Retry retains the original request and reconciliation state. A provider outage or rate limit does not require re-entering the connection or submitting another create request.

Disable and Retire first quarantine local access, then perform the remote operation. A remote failure leaves local access quarantined. Retirement retains audit and proof history. A denied registration likewise does not automatically free a previously proven identity. Release declaration is available only for an unbound declaration with no recorded proof in its current or historical registration. Use Re-enrol agent when offered for the existing denied registration and complete fresh proof and approval; do not transfer a proven identity merely to clear a collision.

Run the workload and approve its registration

1. Open Agentic → Agents → Needs attention and select the registration’s Review button. Check the stable workspace key, display name, framework, and Accountable owner. When the developer ran the SDK with DEEPINTSHIELD_REGISTERED_BY, the header shows Registered by <email> with Given by the developer with the virtual key. Not verified. The gateway mapped the address to a person in the workspace directory, created just in time when unknown, and proposes that person as the owner: select Confirm owner or choose another. The address is not verified and grants nothing. Without that setting, an e-mail-shaped requester is only an advisory hint: the header shows it only when it belongs to a person the organization placed in the workspace, and otherwise it is ignored, so the registration has no registering address. An enrolment policy’s owner takes precedence. If needed, Add owner → Name / Email → Create and select creates an active human directory entry without granting roles.
2. Select the validated Identity provider. A completed provisioning job has already declared the expected identity. For an externally provisioned workload without a declaration, enter its exact Expected identity and click Declare once. A friendly key differing from the provider’s child ID is expected; identity does not match can mean that declaration/proof is still missing.
3. Check that Submission identity shows Active credential. The developer needs four settings: DEEPINTSHIELD_BASE_URL, DEEPINTSHIELD_VIRTUAL_KEY, DEEPINTSHIELD_AGENT_NAME and DEEPINTSHIELD_REGISTERED_BY. Run setup → Copy settings under Runtime access supplies only the URL and the agent name; the developer supplies the active key through the workload’s secret manager and their own work e-mail. Run 1 of the saved script captures the source and, in Entra gateway mode, enrols the runtime key; the developer sees only Registration pending. Reference <registration id> · runtime key SHA256:<thumbprint>. Contact your administrator. You will be notified at <email>. and receives no review link. The closing sentence appears only when the gateway confirmed the address.
4. In Runtime access, compare Key fingerprint with the thumbprint the developer received and select Authorize runtime key. A key submitted before its identity existed is marked Provisional with Runtime key received. Create or link the agent identity in Step 1, then authorize this key.; authorizing it before the identity exists is refused with runtime_binding_identity_missing. For direct mode, the workload host itself must hold an Entra credential (environment variables, workload identity federation or a managed identity); the SDK obtains provider settings from the gateway and exchanges that host proof for the child token. See the SDK first-run example.
5. Proof arrives on the agent’s next run, not during the sitting. Workload proof not observed / Awaiting workload proof is expected at this point; with the identity declared and exactly one authorized key, Review & decide offers Approve now, activates on the agent’s next run. A tested provider, active reporting key, or completed provisioning job does not satisfy the proof requirement; the next attested run does. Without deferred activation, the developer runs again now and a run can still report agent_registration_pending until approval.
6. Open Code & changes to review the source scan, then Tools & access to review the exact tool actions. blueprint_coverage_incomplete requires complete executable-source capture from the saved workload with a current SDK. An empty artifact list is not a completed code review; identity, model, or permission changes cannot supply that evidence. See Blueprint code review.
7. Select only the observed tool actions and required resource permissions. A local workload with no tools needs no tool grant. Namespace and governed capabilities describe governance; they are not resource permissions. Reuse an access profile only after checking its proposed exact choices.
8. When Owner, Identity, Code, and Access are ready and proof is still outstanding, select Approve now, activates on the agent’s next run and confirm with Approve now · activates on next run: the card shows Decision recorded and lists the actions that activation will grant, the developer is e-mailed, and the next run of the unchanged script activates the agent and executes it. The reviewer cannot be the accountable owner. Resource permissions, roles and delegations are not part of a recorded decision; add them after activation when the agent needs them. When proof has already been observed, choose Preview approval, inspect the proposed changes, then Confirm approval and access. If a saved plan reports access incomplete, use Resume saved approval to complete it. A changed or conflicting plan needs a fresh review; archiving a plan does not grant or revoke existing access. The Deny action requires a note; the developer is e-mailed either way.

The intended endpoint is Decision recorded followed by an approved run, or Approved. Selected access is ready. after an immediate approval. Run the same workload again with the same key and identity. Runtime policy, tool integrity, any on-behalf-of user’s permissions, and later code changes still apply. See Guided access.

Provider validation, workload authentication, and access approval have different owners. An administrator configures the provider and runtime credentials once. The reviewer then checks identity proof, code, ownership, and exact access in one registration review workspace. Provider validation does not prove that Python has the credentials, and clicking Declare does not authenticate it.

Who and where	What to configure	When
Identity administrator, identity provider console	A workload application and the credential or federation it will use	Once per workload identity; update on rotation or deployment changes
Platform administrator, Agentic → Identities → Identity providers	Issuer, gateway audience, signing keys, and provider-specific settings; validate the provider	Once per provider configuration, then after configuration changes
Developer, machine/container running Python	Gateway URL, active virtual key from a secret manager, friendly agent name, work e-mail (DEEPINTSHIELD_REGISTERED_BY), and workload credentials for direct mode	Once per deployment
Reviewer, Agents → Needs attention → Review	Owner, expected identity if needed, authorized runtime key, completed code scan, exact tool/resource access; must not be the accountable owner for a deferred decision	Initial approval and changes that require review
SDK and gateway	Acquire/refresh tokens and check runtime authorization	Automatically during execution

For Entra direct mode, the host credential must be trusted by the selected blueprint’s federated identity configuration. Installing deepintshield[azure], signing in to the dashboard, or declaring the child UUID does not create that trust. An SSH tunnel to a gateway does not transfer an Azure host’s managed identity to a Python process running on a laptop.

For Generic OIDC, configure the following separately:

Location	Setting	Value
Provider editor	Issuer URL	Exact issuer from the identity provider’s discovery metadata
Provider editor	Audience (verify)	The API identifier in the access token’s aud; not automatically the browser URL
Provider editor	JWKS URI	Public signing-key URL, or leave blank and validate to discover and save it
Provider editor or workload environment	Client ID / OIDC_CLIENT_ID	The workload application’s client ID
Workload environment	OIDC_TOKEN_ENDPOINT	Provider-advertised token endpoint; the SDK can discover it from the issuer if omitted
Workload environment	OIDC_SCOPES	Space-separated per-client scopes; unset uses provider defaults and empty requests no scopes
Workload environment	OIDC_AUDIENCE	Token-request audience where required; empty omits it without changing gateway audience verification
Workload secret manager	OIDC_CLIENT_SECRET	The application secret for a secret-based client authentication method
Agent review	Expected identity	Token principal (normally sub); it need not equal the OAuth client ID

Copy the provider’s principal exactly, including case and any literal agent: prefix. Generic OIDC and ZeroID identities are case-sensitive. The server may represent an opaque principal as an internal hashed identity key after declaration; keep the friendly agent name in Python.

An older provider tested with an empty JWKS URI may need to be tested again once so the discovered URL is saved. The gateway reports this as a revalidation requirement. Discovery and provider tests belong to setup, not every tool call.

If an older bound Generic OIDC/ZeroID agent relied on case folding, prefix removal, or the earlier mapping of URI subjects, it needs a new reviewed registration under a unique agent key with the exact raw principal. A bound alias cannot be silently repointed. Approve the replacement’s required access, then retire the old registration. Ordinary lowercase principal IDs and Entra UUID bindings retain their existing mapping.

For another client authentication method, set OIDC_CLIENT_AUTH_METHOD on the machine running Python. client_secret_basic uses the application secret; private_key_jwt uses OIDC_PRIVATE_KEY_FILE (and optional key ID/algorithm); tls_client_auth or self_signed_tls_client_auth uses OIDC_CLIENT_CERT_FILE and OIDC_CLIENT_KEY_FILE. Register the corresponding public key or certificate with the issuer first. Private files and passwords stay in the workload’s secret manager. These TLS methods authenticate at the token endpoint; they do not add support for certificate-bound access tokens at the gateway.

Use an access token intended for the gateway, not a browser ID token. OIDC login support alone does not guarantee an issuer supports the workload’s client credentials grant, token format, or chosen client authentication method.

Names and workspace isolation

DEEPINTSHIELD_AGENT_NAME selects the agent key within its organization and workspace. A different human using the same name does not create another agent. An unassociated virtual key cannot take over an existing registration. Use a different key name such as simple-math-agent-alice for an independent agent in the same workspace; another workspace can reuse simple-math-agent with its own registration. Display labels can repeat.

For a provider-backed agent, an associated virtual key must also present proof for the bound workload identity. Someone who possesses both authorized credentials is operating that same agent, subject to runtime permissions and code review. VK-trusted agents have no provider-backed authentication check.

Admit a class of identities from one provider

Binding a provider to exactly one client id means one provider row per agent, with the same issuer, authority, and audience re-entered for every agent in the estate. agent_identity_match_mode generalises that from “this one agent” to “the agents this issuer vouches for”:

Mode	Admits
exact (default)	Only the configured agent identity client id.
list	Any value in agent_identity_match.
prefix	Any value carrying one of the listed prefixes.
any	Any identity the issuer signs for. Correct only when the issuer is dedicated to this workspace’s agents.

Per-agent binding is not weakened by this. Whatever the predicate admits, the agent subject is still pinned to the exact identity the token carries. The predicate decides which identities a provider may speak for, never which agent a given token is. An unrecognised mode collapses to exact, so a typo can never widen a provider.

Bound accepted token lifetime

exp alone leaves the issuer deciding how long a stolen credential stays useful: an issuer minting 24-hour agent tokens has every one of them honoured for its full life, so a token lifted from a log or a crash dump is valid for the rest of the day.

accepted_token_max_ttl_sec on the identity provider is the relying party’s own tolerance:

Value	Effect
0 (default)	A bounded default of one hour. Accommodates the common one-hour token while removing the unbounded case.
n > 0	Refuse a token from this provider whose total lifetime exceeds n seconds.
n < 0	Disable the ceiling. An operator has to choose this deliberately.

This is separate from token_max_ttl_sec, which is mint-side and only shortens the expiry on tokens the gateway itself hands out.

Token lifetime is also separate from registration approval. An approved agent has no fixed run count or registration expiry: subsequent actions still require current credentials, grants, policy, and an accepted blueprint. Provider-backed SDK credentials refresh on demand when renewal is needed; StaticAgentCredential cannot renew a supplied token. A token expiring does not itself delete the registration. See Repeated runs.

Replay protection

Bearer access tokens can be reused until expiry, including tokens containing jti. Making those tokens single-use conflicts with normal SDK token caching and is not sender authentication. Protect bearer credentials with TLS, limited audiences and privileges, short lifetimes, and controlled secret handling.

For sender-constrained tokens, each request instead carries a fresh DPoP proof. The proof’s jti is single-use and checked against shared durable storage across gateway replicas. The access token remains reusable with a new valid proof; reusing a proof is rejected, and replay-store failures fail closed.

Proof-of-possession (DPoP)

Set require_proof_of_possession on an identity provider to refuse a plain bearer token from it. The client then holds a private key, the issuer binds that key’s thumbprint into the token as cnf.jkt, and every request carries a fresh proof signed by the key over the request method and URI (RFC 9449). A stolen token without the key is useless.

• It is off by default, and should stay off until the issuer actually binds tokens. A token with no cnf.jkt has nothing to prove possession of, so enabling this first denies everything.
• Ordinary tokens without a cnf claim remain usable when proof of possession is optional. Malformed or unsupported confirmation constraints are refused; certificate-bound tokens are not silently treated as ordinary bearer tokens.
• The Python SDK generates an ephemeral per-process key and needs the optional dependency: pip install "deepintshield[dpop]==3.2.0". See Agents and Agentic governance.
• Automatic acquisition of issuer-bound tokens is supported by the Generic OIDC adapter when the issuer supports DPoP. The built-in Entra and ZeroID exchange adapters reject a required-DPoP configuration they cannot satisfy.

Protecting an approved binding

Once an agent’s registration is approved with an identity provider, clearing that provider is an attestation downgrade: the agent would keep every grant it earned while proving less about who it is. PUT /agents/{id}/governance therefore refuses to empty identity_provider_id on an approved agent; changing it requires an explicit re-review.

Expected identities: the resolution layer

A workload often announces itself by a friendly name (agent:math-agent) while the identity a provider can prove for it is a client id (agent:11111111-…). An expected identity declares, per friendly agent key and workspace, which provider-issued identity that name is expected to prove. It is modelled on a SPIRE registration entry: it names the identity a workload should attest to, and it never attests anything itself.

What a declaration does:

• Resolves the name before validation and verification. At first sighting, a token that verifies against the declared provider and derives to exactly the expected subject attests the registration under the friendly name. At runtime, a bound agent’s token is verified as the expected identity while the agent keeps its friendly subject - so every allowed_caller tuple, resource grant and delegation stays keyed to agent:<key> and survives the upgrade from VK-trusted to provider-attested.
• Unlocks an explicit VK-trusted approval. With an expected identity declared, the review form offers Approve as VK-trusted (development only) while the workspace setting Allow VK-trusted approvals (development only) is on: the agent is approved with no provider, recorded as unattested, and carries its own exit - the declaration says what proof will complete it.
• Proposes, never promotes. When an approved VK-trusted agent later presents a verified token for exactly its expected identity, the gateway records an attestation upgrade proposal. The call proceeds VK-trusted and nothing on the agent changes until an operator confirms in the registration review. Confirmation binds the provider, records which provider attested the agent and when, and marks the declaration bound - in one transaction, under row locks, re-checking that the proposal still matches the declaration and that the provider is enabled and tested.

Invariants the layer enforces:

• A declaration can be satisfied only by a verified token for exactly the expected subject from exactly the expected provider. Selecting the expected provider in a review for a registration that never presented such a token is refused - declaring is not vouching.
• Proof applies to the current declaration. Changing the expected identity, including changing away and back, requires fresh proof. A note-only edit does not. Existing pending declarations from an older server may need one credentialed rerun after upgrading; approved profiles remain approved.
• One name, one identity; one identity, one name per workspace, enforced by the database. Two names can never race for the same credential.
• A bound declaration is immutable: re-pointing a name at another identity is an identity change and goes through registration review again. Deleting it is refused for the same reason.
• The resolved identity is stored on the agent profile the request already loads, so runtime resolution needs no additional declaration-table query.

In Agents → Needs attention, open Review on the discovered registration. Choose an enabled, tested Identity provider, enter Expected identity, and select Declare, or create or link the identity from the same sitting. This is an identity declaration only. With the runtime key authorized, record the decision with Approve now, activates on the agent’s next run: the decision binds to that declaration’s revision, and the agent’s next run must present matching verified proof before it activates. Changing the declaration afterwards marks the decision stale. Use Approve as VK-trusted (development only) only when the deployment deliberately accepts unattested trust in the reporting Virtual Key; it is offered only while the workspace allows it, labelled development-only, and cannot be deferred. It is a distinct trust mode, not a fix for missing workload proof.

When matching verified proof later arrives, the review shows Token verified · confirm identity. Select Confirm attestation to bind the provider while preserving the friendly agent subject and its grants. Declaring or observing the identity never silently performs that upgrade.

Manage declarations from the registration review (Expected identity) or the API:

GET    /api/agentic-new/registry/identity-aliases
PUT    /api/agentic-new/registry/identity-aliases        {agent_key, expected_provider_id, expected_subject}
DELETE /api/agentic-new/registry/identity-aliases/{id}
POST   /api/agentic-new/registry/registrations/{id}/attest           confirm a verified proposal
POST   /api/agentic-new/registry/registrations/{id}/attest/dismiss

Next steps

• Agent Enrolment: enrol a class of verified agents from one rule.
• Agentic: the full control-plane workflow.
• Registration notifications: the e-mails each registration step sends and the mailbox that sends them.
• Setting up Entra: connect Microsoft Entra.
